4ms Controller Overview

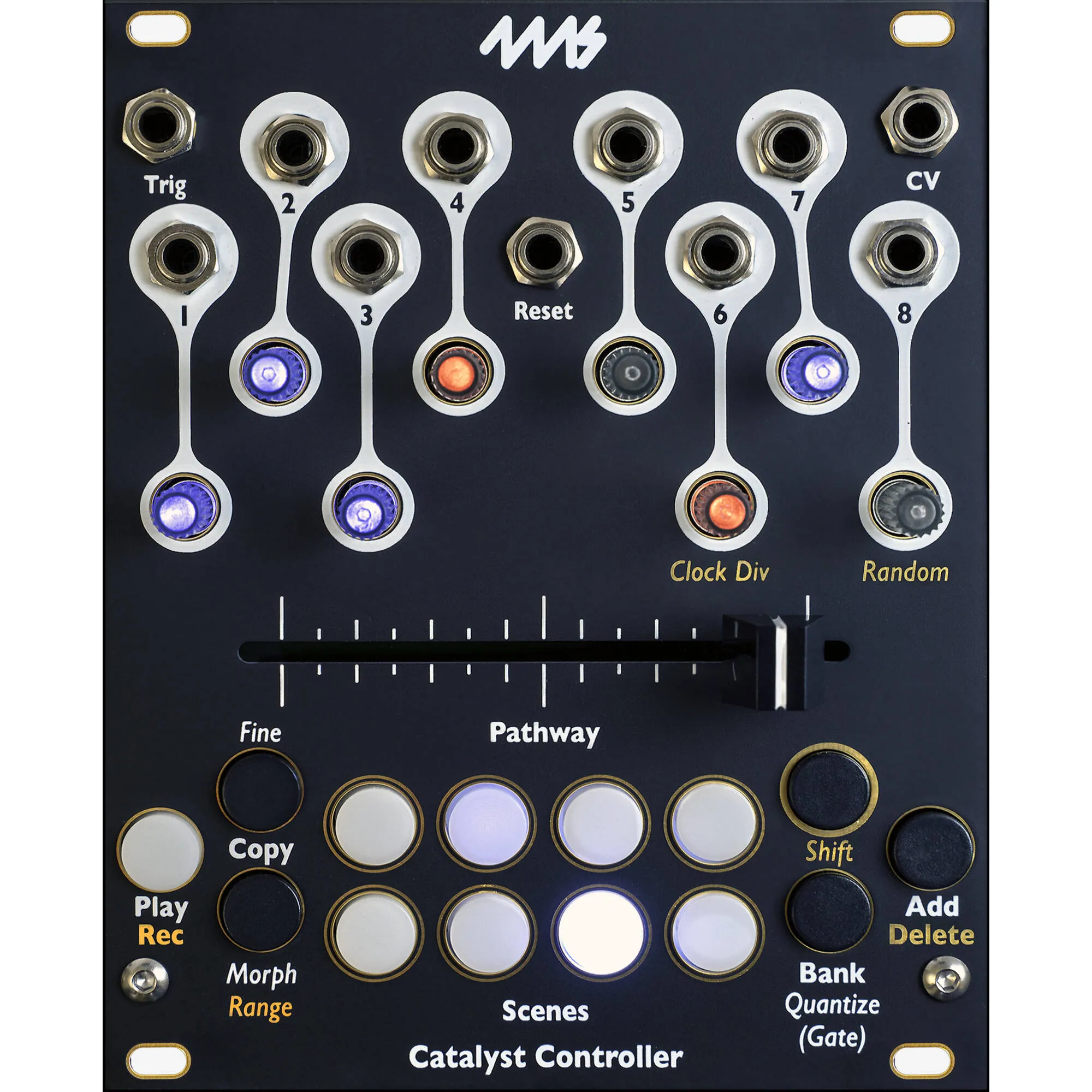

Take control of your modular signals with the 4ms Catalyst Controller, a macro controller with eight precision CV outputs and a responsive crossfader to morph between scenes. Each scene is a snapshot of up to eight CV outputs, which can work like a modular preset. Jump to different scenes with the dedicated scene buttons or traverse a pathway composed of multiple scenes using the crossfader or an external CV signal. Record CV and slider movements, and play recordings back via a button or external trigger.
Each precision output has a maximum range of -5V to 10V. Channels have an adjustable morphing curve that can be quantized to common scales, restricted to a particular voltage range or set to output gates. Whether used as a CV preset manager, seamless transition generator, chord sequencer, CV recorder, or experimental CV playground, the Catalyst Controller puts control of your modular at your fingertips.
- Smooth, responsive crossfade morphs between scenes
- Eight output channels, each can be CV or Gate
- Arrange scenes into pathways of up to 64 scenes
- Smooth, responsive crossfader morphs from scene to scene along the pathway
- Set slew/lag to limit how fast scenes can change
- Adjustable Morph time per output
- Control crossfading with an external CV
- Record and playback up to 20 seconds of CV and crossfader motion
- CV outputs can be set to -5V to 10V maximum, or limited to /-5V, 5V, 3V, or 1V
- CV outputs can be unquantized (sub-1mV resolution), or Quantized to common scales
- Randomization of channel values/gates
- Copy/paste
- Based on the original Catalyst from Emblematic Systems
- 20 HP Eurorack format module
- Includes power ribbon cable with 10-pin Eurorack power header
- Power consumption: 12V: 60mA, -12V: 25mA
In the Box
- 4ms Catalyst Controller Eurorack Module (20 HP)
- Eurorack Ribbon Power Cable
- Set of Mounting Screws
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
4ms ControllerSpecs
| Power |
Power Consumption: 12V: 60mA, -12V: 25mA
|
| Dimensions |
20 HP
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
0.605 lb
|
| Box Dimensions (LxWxH) |
5.7 x 4.9 x 3.2"
|
