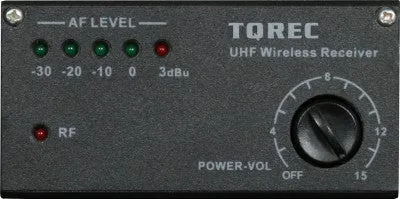

Galaxy Audio’s professional Single Channel UHF Receiver Module for the Traveler Quest Portable PA Systems will allow you to use a wireless microphone with a receiver card. This now means, with the Single Channel Receiver loaded into your Traveler Quest System, you can operate a wireless microphone!
- Single Receiver
- TQREC Works with the TQ8 Model
- RF and AF Indicator
- Volume Control
- Easy Aftermarket Installation
TQREC SPECIFICATIONS
| Frequencies | N2 517.550MHz N4 521.850MHz |
|---|---|
| Oscillation Type | PLL synthesized control OSC |
| Frequency Range | 80Hz ~ 16kHz ±3 dB |
| Frequency | Channel Single Fixed Frequency |
| Operating Temperature | -10 ºC ~ 50 ºC |
| Power Requirement | 12V/0.5A |
| Display | LED AF/RF Indicators |
| Audio Output Level | 5dbV |
| Output Impedance | 3k Ohms |
| Controls | Volume |
| S/N Ratio | > 85dBA |
| Dynamic Range | > 83dB |
| T.H.D. | <0.5% |
| Operating Distance | 160' (50 m) (Under Optimum Conditions) |
| RF Sensitivity | <-95dBm |
| Image Rejection | >50dB |
| Dimensions | 1.88" x 1.38" x 1.75" |
| Weight | 0.125 lbs. |
