DESCRIPTION
GS Tooling Part Number: GS-531-166

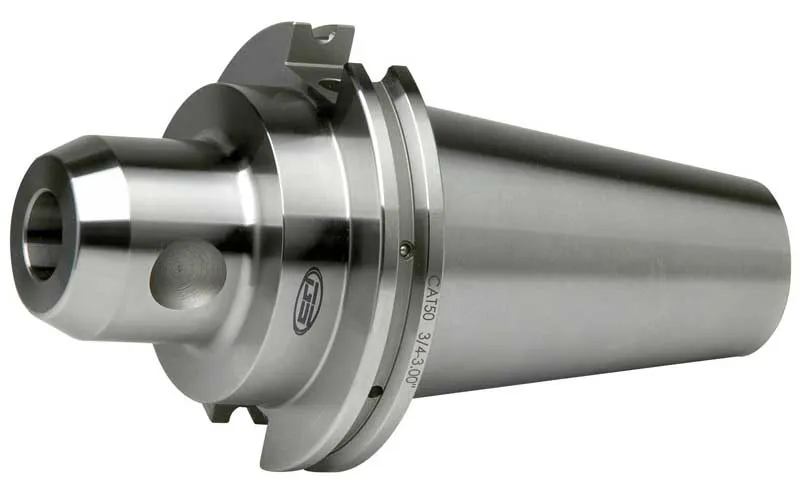

GS Tooling End Mill Holders are precision made to DIN Standards and are made of low carbon Chromium-Molybdenum Alloy Steel- SCM415 to HRC 56-60. These End Mill Holders feature two coolant options built into the holder; through the flange and through the body. They also have a maximum TIR 0.00002" from OD to ID and include a certificate of inspection.
- 100% Forged Construction
- Certified balanced to 30,000 rpm
- Precision Ground Throughout
- DIN Coolant thru the flange
***Product image may be different than actual product.
SPECIFICATIONS
| Brand: | GS TOOLING |
| Type: | End Mill Holder |
| Model: | 531166 |
| Taper: | CAT50 |
| Size: | 1-1/4 |
| Projection (in): | 8 |
| Thru Coolant: | DIN Coolant Thru the Flange |
| Head Diameter (in): | 2.75 |
| Balanced To: | 30000 RPM |
| Prop 65: | Yes |
| Country Of Origin: | TAIWAN |
