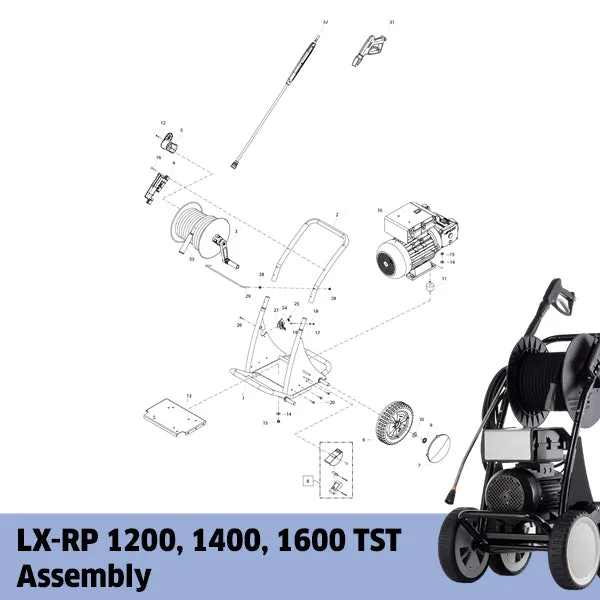

KRANZLE LX-RP 1200, 1400, 1600 TST Assembly

Genuine Spare Parts

See Diagram & Click the link for price & availability

1. Chassis LX series 48701

2. Push bars 48704

3. Hose drum 487340

4. Lance holders 42645

5. Cable winder at top 42612

6. Wheel 44017

7. Hub cap 44018

8. Brake cpl. 440221

9. Starlock disc 40142

10. Washer 40207

11. Rubber anti-vibration metal 47301

12. Screw 414141

13. Base plate 48706

14. Washer 40138

15. Elastic Stop Nut 40139

16. Screw 42647

17. Wing nut 40203

18. Washer 40135

19. Hexagon screw 402451

20. Hexagon screw 44137

24. Strain relief 43431

25. Screw 43415

26. Screw 414142

27. Cable entry 42513

28. Nut 414101

29. Brackets 411014

31. Starlet II with plug-in coupling 123272

32. Lance cpl. with flat jet nozzle D40065 (LX-RP 1200) 12420-D40065

32.1 Lance cpl. with flat jet nozzle D4008 (LX-RP 1400) 12420-D4008

32.2 Lance cpl. with flat jet nozzle D4011 (LX-RP 1600) 12420-D4011

33. High pressure hose NW8 2SN 20m 443812

35. Motor pump LX-RP 1200 487311

35.1 Motor pump LX-RP 1400 487321

35.2 Motor pump LX-RP 1600 487331
