KRANZLE Small Quadro 11/140 TST Assembly

Genuine Spare Parts

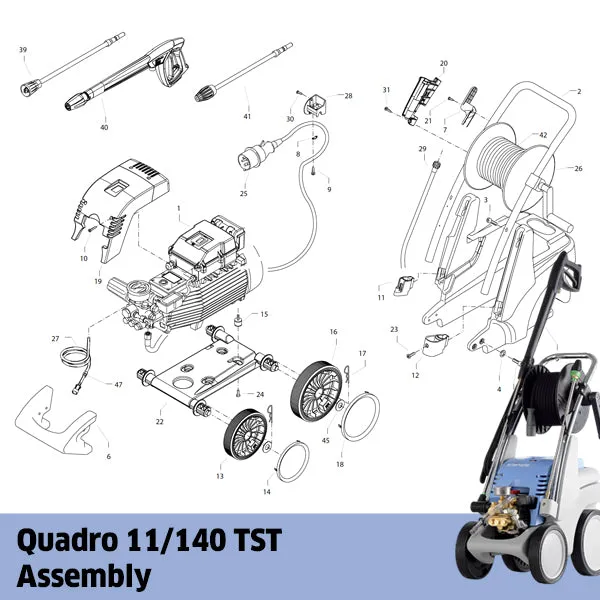

See Diagram & Click the link for price & availability

Motor pump without electrics

1.1 For quadro 9/170 TST 465821

1.2 For quadro 11/140 TST 465822

Motor pump with electrics

1.4 For quadro 9/170 TST 465831

1.5 For quadro 11/140 TST 465832

2. Push bars 46504

3. Screw 46024

4. Disc 50189

5. Water tank 46510

6. Front impact protection 46511

7. Cable winder 46507

8. Strain relief 43431

9. Screw 44525

10. Screw 414141

11. Lance stand 46502

12. Quiver pot 46503

15. Rubber buffers 46547

16. Wheel D250 46508

17. Split pin 46540

19.1 Front panel quadro 9/170 TST 465351

19.2 Front panel quadro 11/140 TST 465352

20. Lance holders 42645

21. Screw 44161

22. Chassis 46501

23. Screw 407011

24. Screw 407011

25. Power connection cables 5.75m

Alternating current (quadro 9/170 - 11/140) 41092

26. Hose reel complete. 46581

27. Chemical suction hose with filter and non-return valve 465480

28. Cable routing with strain relief 46506

29. Connecting hose, hose drum 46537

30. Screw 43426

31. Lens screw 13190

39.1 Lance with flat jet nozzle for 9/170 TST 12435-M2003

39.2 Lance with flat jet nozzle for 11/140 TST 12435-M20045

40. Pistol M2000 12492

41.1 Dirt Killer 03 for quadro 9/170 TST 12438-03

41.2 Dirt killer 045 for quadro 11/140 TST 12438-045

42. High pressure hose 15 m NW6 40170

45. Disc 46533

47. Check valve for chemical suction hose 44240
